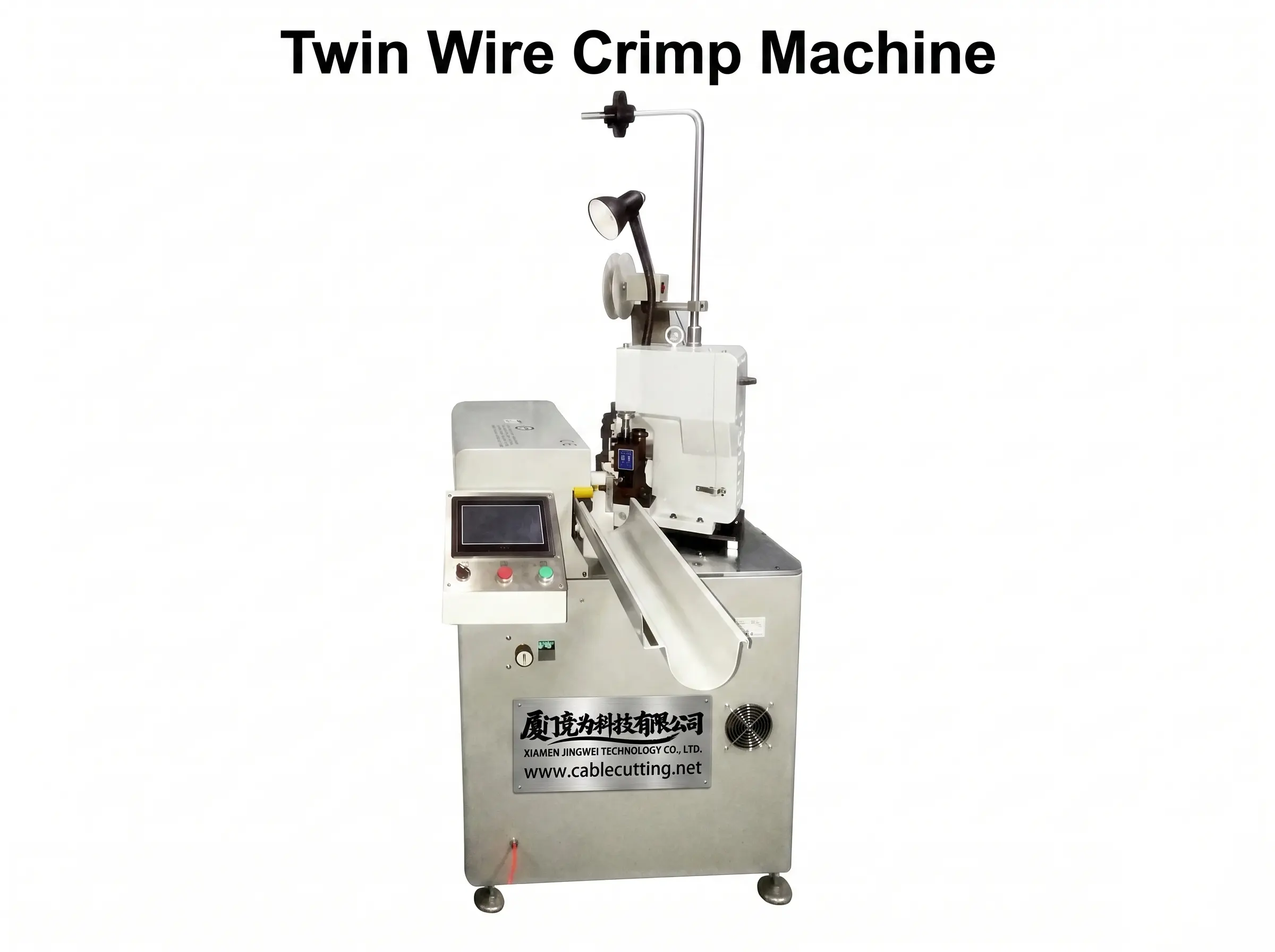

Automatic Twin Wire Crimp Machine | AWG16-28

The automatic wire-cutting stripping and crimping machine adopts a procedural control interface with a touch screen LCD, it has an operating system in Chinese and English, is easy to operate, and has stable performance. Fast send wire, cut wire, strip wire and crimp the terminals, high precision, fast speed, front and rear swing arms are both controlled by servo, and ultra-low noise, more stable. The length of sending/cutting/stripping wire, and the delay time of crimping, all can be accomplished by digital configuration.

available wire size	AWG16-AWG28#
Cutting length	45-3200mm( Longer can be customized)
Cutting accuracy	cutting length *0.2%
Stripping length	0.5mm-14mm
Pressure capacity	1.5T
Detection device	no wire; no terminal, insufficient pressure
Voltage	AC220V/50HZ single phase
Air pressure	0.5Mpa
Dimension	750mm800mm1700mm
Weight	400kg

What wire sizes and cutting lengths can the Automatic Twin Wire Crimp Machine handle?

This industrial machine is designed for AWG16 to AWG28 wire gauges, making it versatile for a wide range of electrical applications. It features an impressive cutting length range from 45mm to 3200mm, accommodating both short harness leads and very long cable runs. The 1.5-ton crimping pressure ensures a secure, gas-tight crimp on terminals within this entire wire range.

What are the key benefits of the servo control and touch screen interface?

The integrated servo control system provides exceptional precision in wire feeding, cutting, and crimping, resulting in consistent, high-quality terminations with minimal waste. The user-friendly touch screen interface allows for quick programming of wire lengths, strip lengths, and production quantities. This combination reduces setup time, minimizes operator error, and enhances overall production efficiency in an industrial setting.

Is this machine suitable for producing cable harnesses with two terminated ends?

Yes, precisely. As a twin wire crimp machine, it is specifically engineered for high-efficiency cable harness manufacturing. It can automatically cut a wire to the set length, strip both ends to the required depth, and crimp a different terminal onto each end in a single, automated cycle. This makes it an ideal solution for streamlining harness production and reducing labor costs.

How does this machine ensure consistent crimp quality and low operational noise?

Consistent quality is achieved through the precise 1.5-ton crimping pressure and the repeatability of the servo-driven mechanisms. The machine's robust industrial construction and advanced engineering focus on operator comfort, resulting in notably low noise levels during operation. This creates a better working environment and allows for integration into workshops without excessive disruption.

What industries or applications is this automatic wire processing machine best suited for?

This machine is ideal for any industry requiring reliable, high-volume wire termination. Key applications include automotive wiring harness manufacturing, appliance control cable production, industrial control panel building, and the assembly of machinery electrical systems. Its ability to handle AWG16-28 wires and long lengths makes it a flexible core asset for electronics manufacturers, contract assemblers, and in-house production facilities looking to automate their wire processing.
