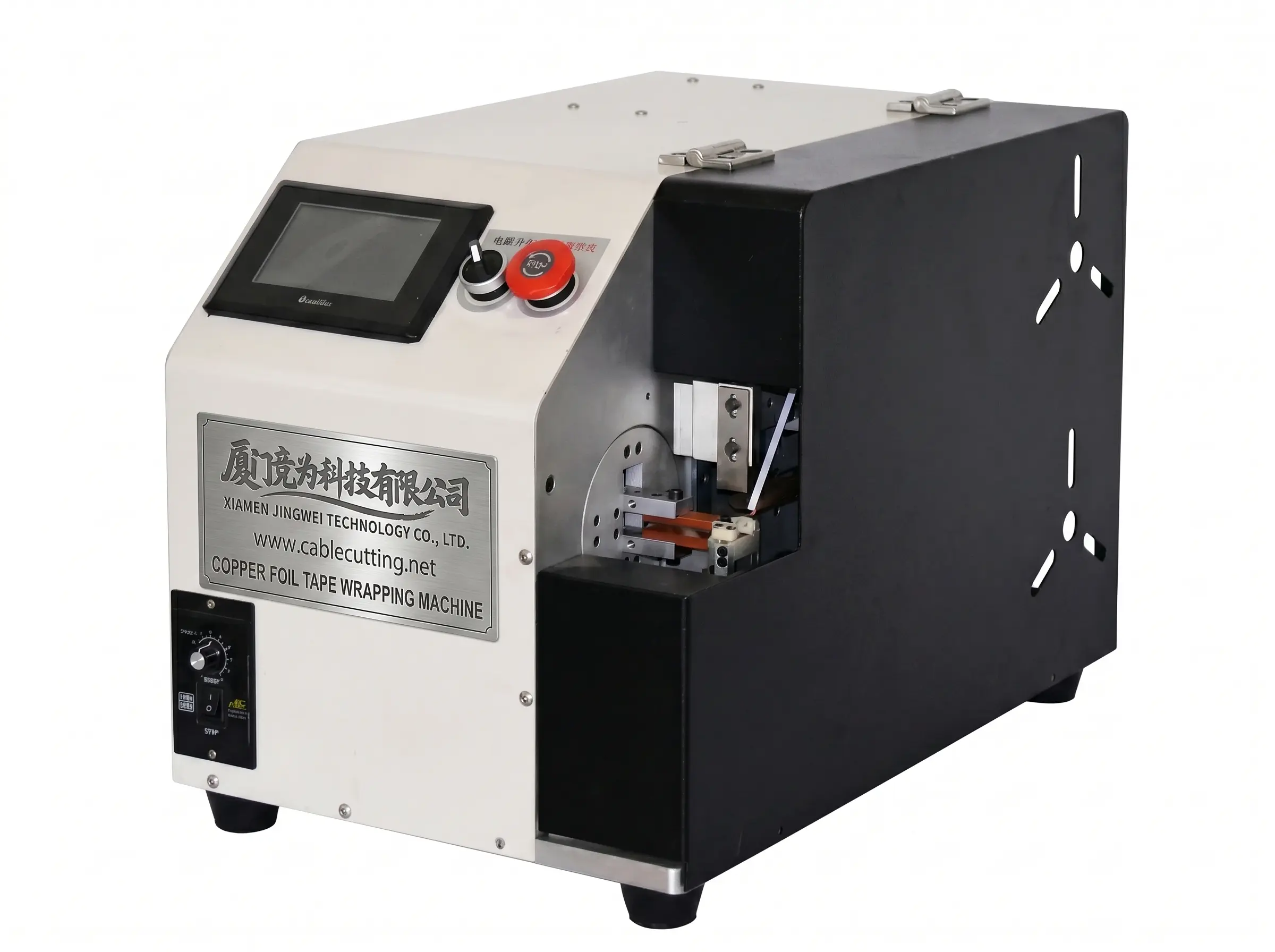

The WPM-TP wraps copper foil tape around round wire to build a shielding layer. It covers wire up to 10 mm in enveloped diameter, accepts foil tape up to 12 mm wide, and runs copper, aluminium and copper-aluminium foil at 900-1200 pieces per hour. The foil is fed from a spool through a guided path into the wrap head, where a guide blade presses the tape onto the wire.
A foil shield only works if the foil closes along the full length of the run, and by hand that seam wanders as the roll is passed around the wire. The WPM-TP holds the wire on a fixed axis and drives the foil from the head, so the seam lands in the same position on every piece. The cycle is set from a touch screen, with a separate speed dial and strip switch on the panel, and the head runs on 220 V 50 Hz at 800 W with an air supply of at least 5 kgf/cm2.
This is the only machine in the set that runs metal foil. The WPM-75 (278) applies 12-18 mm tape to coils, the WPM-1310 (362) winds PTFE tape on threaded joints, and the WPM-6-12 (367) flat-wraps harness runs. The WPM-TP is the unit for conductive tape, where the purpose of the wrap is shielding rather than bundling, and where the wire is round and no larger than 10 mm.
Key Features
1. Copper foil tape up to 12 mm wide; aluminium and copper-aluminium foil also accepted
2. Round wire up to 10 mm enveloped diameter
3. Output of 900-1200 pieces per hour
4. Guided foil path from spool to wrap head with a spring guide blade at the seam
5. Touch-screen HMI with separate speed dial and strip switch
6. 800 W on 220 V 50 Hz, air supply from 5 kgf/cm2, 35 kg
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-TP |
|---|
| Function | Copper foil tape wrapping for cable shielding |
|---|
| Enveloped diameter | Up to 10 mm, round wire |
|---|
| Foil tape width | Up to 12 mm |
|---|
| Tape types | Copper foil, aluminium foil, copper-aluminium foil |
|---|
| Efficiency | 900-1200 pcs/h |
|---|
| Control | Touch screen, speed dial, strip switch |
|---|
| Power supply | 220 V 50 Hz, 800 W |
|---|
| Air source | At least 5 kgf/cm2 |
|---|
| Dimensions | 550 x 360 x 390 mm |
|---|
| Weight | 35 kg |
|---|
Applications
— Data and signal cable - copper foil shielding on twisted pairs and multi-core signal cable before jacketing
— Automotive sensor and camera harness - foil wrap on shielded runs to control interference
— Medical cable assembly - shielding layer on patient monitor and imaging leads
— Coaxial and RF cable production - foil wrap over the dielectric or under the braid
— Industrial control cable - aluminium foil wrap in drain-wire shielded constructions
