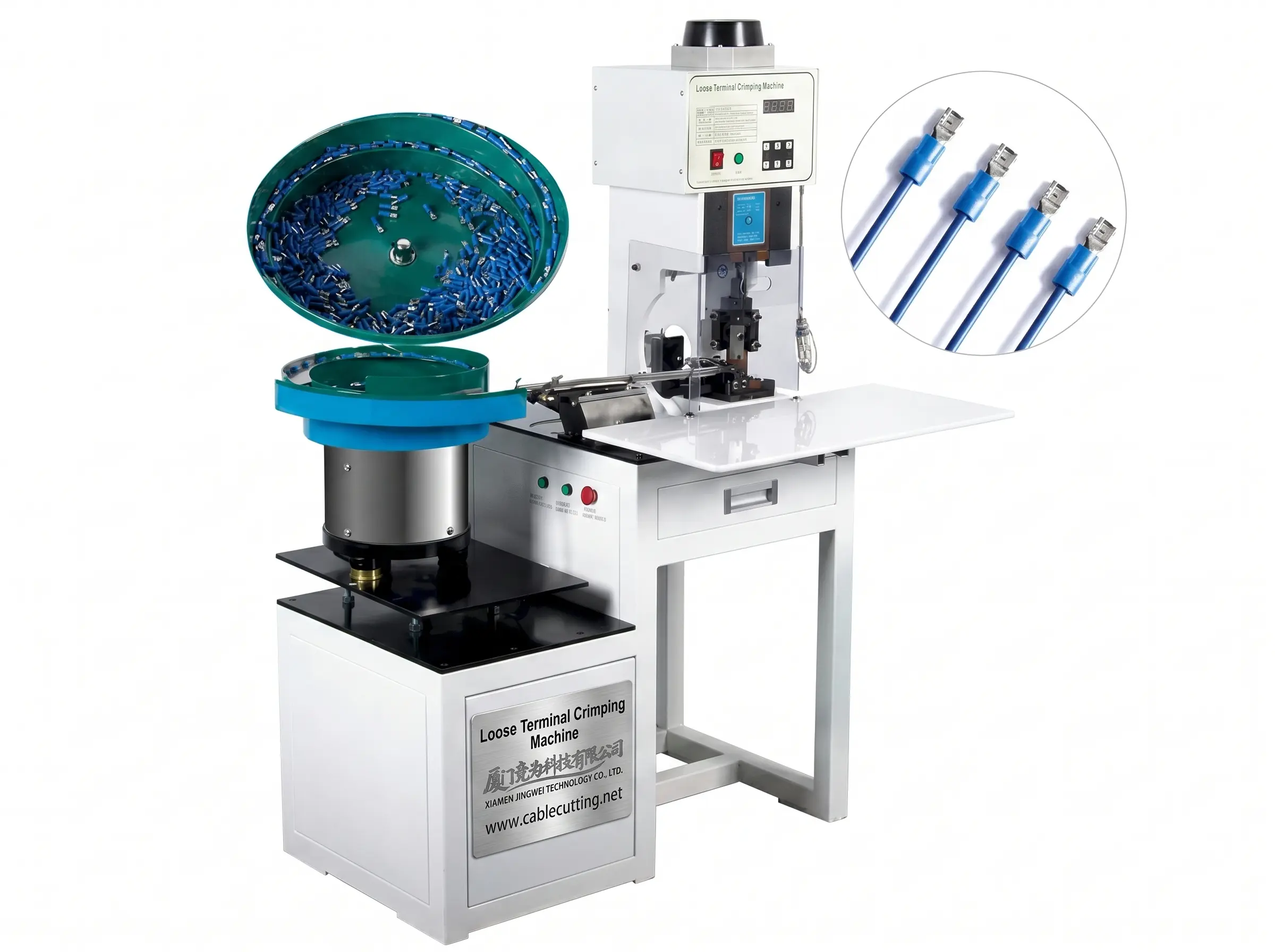

WPM-160 is a semi-automatic crimping machine for loose terminals, fed from a vibration bowl along a linear track into the applicator. Press capacity is 2.0 T with a 30 mm slide stroke, a 126 mm closing height and 10 mm of closing-height adjustment. Output reaches 120 pcs/min on a floor frame of 450 x 800 x 1200 mm weighing 160 kg.
Loose terminals are normally placed by hand, one at a time, which ties the operator to the die and lets crimp position drift between shifts. On the WPM-160 the bowl orients and queues the terminals and the track delivers them to the crimp point, so the operator handles only the wire. Closing height adjusts over 10 mm, which lets one press run terminal families of different heights without adding shims under the applicator.
Against the JW-CM10 in this group, the WPM-160 is a dedicated press: it does not cut, strip or twist, but it feeds loose terminals automatically at 120 pcs/min, where the JW-CM10 needs strip-fed terminal reels. Against the WPM-2P_64P the terminal family differs as well, loose single terminals here and IDC ribbon connectors there. Choose this machine when terminals are bought loose rather than on reel.
Key Features
1. 2.0 T crimping capacity on a 30 mm slide stroke, for loose terminals closed in a mechanical press frame
2. Closing height of 126 mm with 10 mm of adjustment, so terminal height is trimmed at the press instead of with shims
3. 120 pcs/min output: the bowl and track queue terminals continuously, so cycle time is set by the press and not by the operator's hands
4. Applicator and blade set are replaced as a unit, and the blade pair is rated for 500,000 crimps before change
5. Drive is a 250 W main motor with a 120 W bowl drive and a 60 W work lamp on AC 220 V/50 Hz, with a filter-regulator on the air line; the crimp is a powered stroke from the motor, not a treadle impact at the die
6. Start and stop buttons sit on the frame front and the cycle runs from a foot switch, keeping both hands on the wire away from the die line
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-160 |
|---|
| Machine type | Semi-automatic loose terminal crimping machine with vibration plate |
|---|
| Crimping capacity | 2.0 T |
|---|
| Slide stroke | 30 mm |
|---|
| Crimping speed | 120 pcs/min |
|---|
| Closing height | 126 mm |
|---|
| Adjustable closing height | 10 mm |
|---|
| Power consumption | Motor 250 W, work lamp 60 W, vibrating plate 120 W |
|---|
| Voltage | AC 220 V / 50 Hz |
|---|
| Dimensions | 450 x 800 x 1200 mm |
|---|
| Weight | 160 kg |
|---|
Applications
— Power cords and extension leads: insulated ring and fork lugs crimped onto loose terminals at 120 pcs/min
— Automotive harness cells running loose terminal stock rather than reeled strip
— Appliance power leads: terminal-to-wire sets where the lug height varies between models
— Control cabinet wiring: loose ferrules and lugs crimped as kits are pulled
— Job shops holding bulk loose terminals: bowl changeover instead of a new reel for each terminal
