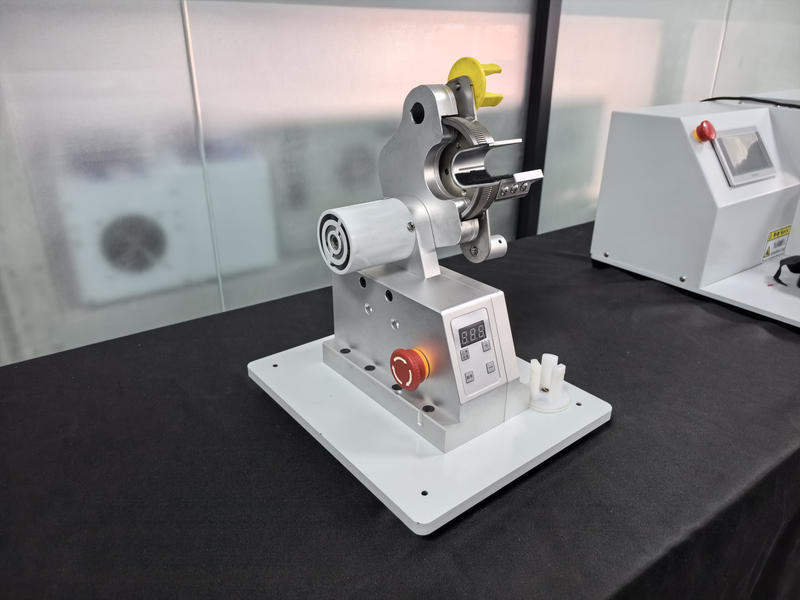

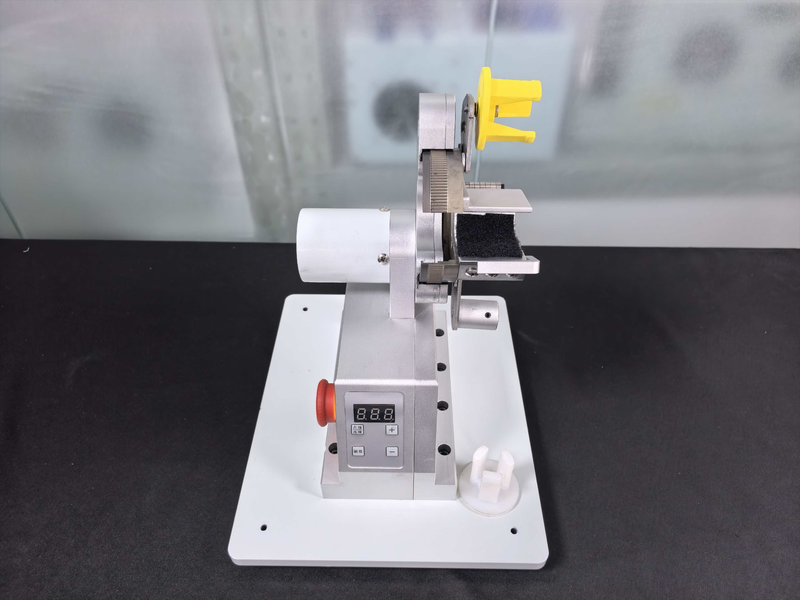

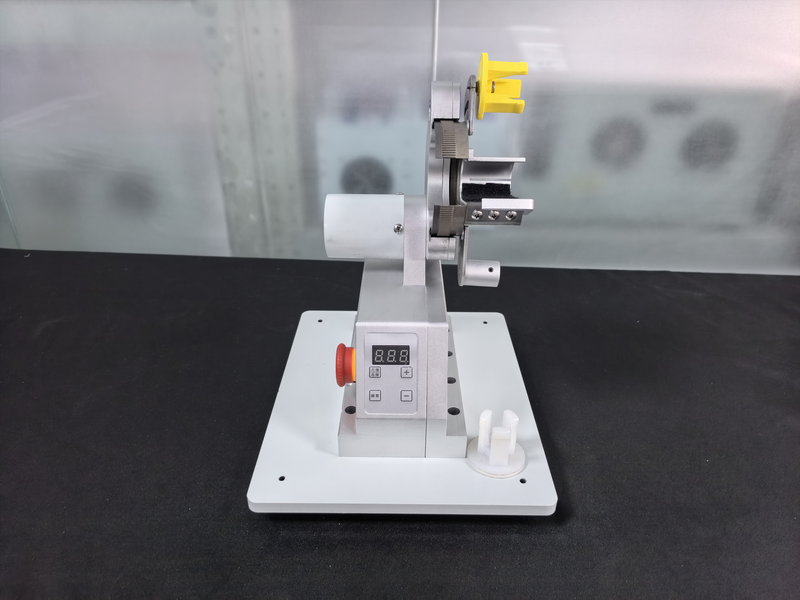

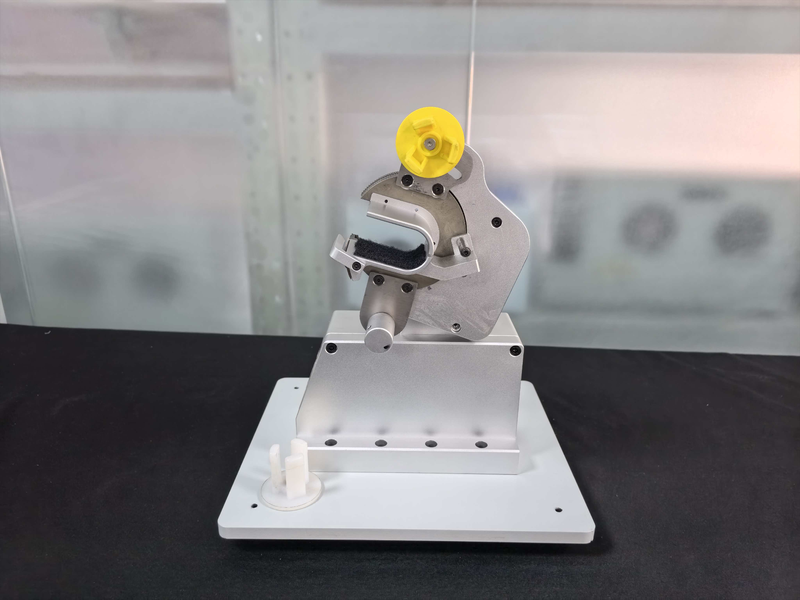

Vertical Cloth Winding Machine JW-25W
Vertical Cloth Winding Machine JW-25W Thumb Vertical Cloth Winding Machine JW-25W Thumb Vertical Cloth Winding Machine JW-25W Thumb Vertical Cloth Winding Machine JW-25W Thumb Vertical Cloth Winding Machine JW-25W Thumb Vertical Cloth Winding Machine JW-25W Thumb Vertical Cloth Winding Machine JW-25W Thumb

Vertical Cloth Winding Machine JW-25W

  • Model No: JW-25W

  • Specifications

    Machine Model: JW-25W
    Machine Type: Vertical Cloth Winding Machine
    Voltage: 100-240V 50/60HZ
    Machine Dimensions: W300*L250*H330mm
    Net Weight: 10kg
    Winding Mode: Spiral Winding
    Applicable Tapes: PVC, Vinyl, Flocked Cloth, Cloth-Based Tape, High-Temperature Tape, Ceramic Tape, etc.
    Applicable Wire Diameter: 3-25mm
    Tape Width: 5-25mm
    Maximum Tape Outer Diameter: 110mm
    Tape Inner Hole Size: 38mm/32mm optional, others customizable
    Winding Direction: Left and Right
    Speed: 1-9 Gears (Adjustable)
    Spot Winding Turns: 1-99 Turns (Adjustable)
  • Inquiry now

JW-25W Vertical Cloth Winding Machine

Machine Overview

The JW-25W is a high-performance vertical cloth winding machine designed for efficient and flexible wire harness winding. It features a compact vertical structure, spiral winding method, and user-friendly operation, making it particularly suitable for short wire and multi-branch wire winding scenarios. Its small size and lightweight design ensure easy placement and mobility in various workshop environments.

Technical Parameters

  • Machine Model: JW-25W
  • Machine Type: Vertical Cloth Winding Machine
  • Voltage: 100-240V 50/60HZ
  • Machine Dimensions: W300*L250*H330mm
  • Net Weight: 10kg
  • Winding Mode: Spiral Winding
  • Applicable Tapes: PVC, Vinyl, Flocked Cloth, Cloth-Based Tape, High-Temperature Tape, Ceramic Tape, etc.
  • Applicable Wire Diameter: 3-25mm
  • Tape Width: 5-25mm
  • Maximum Tape Outer Diameter: 110mm
  • Tape Inner Hole Size: 38mm/32mm optional, others customizable
  • Winding Direction: Left and Right
  • Speed: 1-9 Gears (Adjustable)
  • Spot Winding Turns: 1-99 Turns (Adjustable)

Machine Features

  • Compact & Flexible Design: With small volume and light weight, it occupies little space and is easy to move, adapting to different workshop layouts.

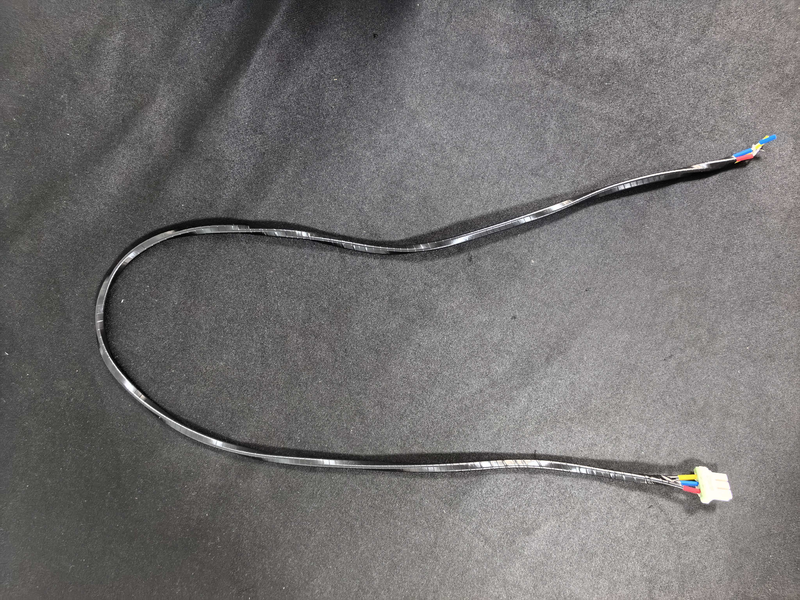

  • Wide Application: Specifically suitable for short wire winding and multi-branch wire winding, meeting diverse production needs.
  • Easy Operation: Simple gear adjustment for speed and spot winding turns, lowering the learning threshold for operators.
  • Strong Compatibility: Compatible with various types of tapes and a wide range of wire diameters, enhancing production versatility.
