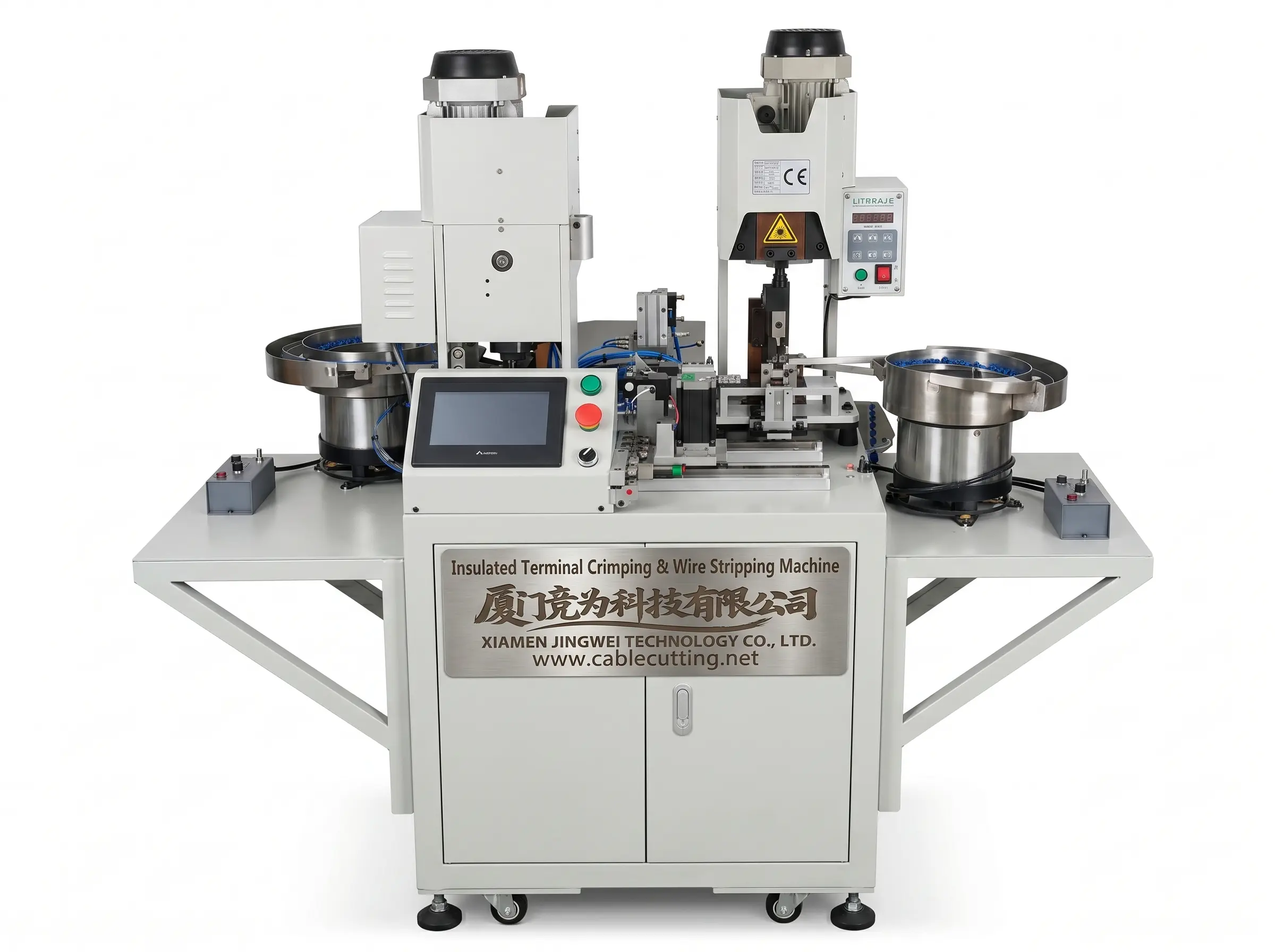

The WPM-R8B is a fully automatic machine that cuts, strips and crimps insulated terminals in one cycle — 1,200 pieces an hour at 100 mm cut length. Instead of three bench operations and three chances to mis-position the wire, the machine indexes the lead through each station and delivers a finished, crimped assembly.
Crimp force is 1.5 T, applied by a dedicated press rather than a hand tool, so the crimp height is the same on the first piece and the ten-thousandth. Cutting error is specified as 0.5 mm plus 0.002 × length, which holds tolerance across long leads instead of drifting.
The machine runs on 220 V single phase with 0.5 MPa air at roughly 140 NL/min, and is rated for 5–25 °C and 30–80 % RH — a normal workshop environment, not a clean room. At 200 kg it sits on a solid floor rather than a bench.
Key Features
1. Cut, strip and crimp in one cycle — 1,200 pcs/hour at 100 mm cut length.
2. 1.5 T crimping force from a dedicated press, so crimp height stays constant across a run.
3. Cutting error 0.5 mm + 0.002 × length — tolerance scales with lead length instead of drifting.
4. Cutting length 100 – 9,999 mm, set in the program.
5. Runs on 220 V single phase and 0.5 MPa air (~140 NL/min) — standard shop services.
6. 200 kg cast frame rated for 5–25 °C and 30–80 % RH, built for continuous production.
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-R8B |
|---|
| Function | Automatic cutting, stripping and insulated-terminal crimping |
|---|
| Productivity | 1,200 pcs/hour (at 100 mm cut length) |
|---|
| Cutting length | 100 – 9,999 mm |
|---|
| Cutting error | 0.5 mm + (cutting length × 0.002) |
|---|
| Crimping force | 1.5 T |
|---|
| Power supply | AC 220 V, 50/60 Hz, 10 A |
|---|
| Air pressure | 0.5 MPa, approx. 140 NL/min |
|---|
| Working temperature | 5 – 25 °C |
|---|
| Working humidity | 30 – 80 % RH |
|---|
| Dimensions | 1,400 × 1,100 × 1,450 mm |
|---|
| Machine weight | 200 kg |
|---|
Applications
— Insulated terminal leads — spade, ring and bullet terminals crimped in one pass.
— Appliance and control panel wiring — matched lead sets at consistent crimp height.
— Automotive sub-harness — high-volume short leads with insulated terminals.
— Contract assembly — one machine replaces three bench stations.
