Automatic Waterproof Wire Cutting Stripping Crimping Machine WPM-624
Automatic Waterproof Wire Cutting Stripping Crimping Machine WPM-624 Thumb
Video Thumbnail

Automatic Waterproof Wire Cutting Stripping Crimping Machine WPM-624

  • Model No: WPM-624

  • Specifications

    Model Number: WPM-624
    Function: Wire cutting, stripping, single-end twisting, single-end waterproof plug single-end crimping
    Productivity: 3500pcs/h (Within 100mm)
    Wire specification: AWG#28-AWG#20
    Cutting length: 50mm-9999mm
    Cutting tolerance range: 1mm+cutting length*0.2%
    Stripping length: 0.1mm-100mm
    Crimping force: 2.0T-3.0T
    Air pressure: 4-6kgf (clean and dry air required)
    Testing Equipment: wire exists, terminal exists, waterproof plug exists, crimp detection, wire blocking, air pressure testing
    Dimension: 700W x 800L x 1500H (mm)
    Weight: 368kg
  • Inquiry now
Wire Cutting Stripping Crimping Machine, Ferrule Crimping Machine, Stripping, And Crimping, Terminal Crimper Machine
1. Automatically complete all the production processes of Plugging waterproof, cutting, stripping, twisting, and crimping at one time.
2. Delicated and concentrated design. Small land occupancy area.
3. KINCO touching screen display and controlling process, easy to operate.
4. Prompting to change the processes and material.
5.High efficient stepper drive、High precision、high speed.
6. Convenient maintenance
7. High-cost performance
8. Fully digital debugging
Function Wire cutting, stripping, single-end twisting, single-end waterproof plug single-end crimping
Productivity 3500pcs/h (Within 100mm)
Wire specification AWG#28-AWG#20
Cutting length 50mm----9999mm
Cutting tolerance range 1mm+cutting length*0.2%
Stripping length 0.1mm-----100mm
Crimping force 2.0T-3.0T
Air pressure 4-6kgf (need clean and dry air)
Testing Equipment wire exists or not, terminal exists or not, waterproof plug exists or not, crimp or not, wire blocking and air pressure testing.
Dimension 700W X 800L X 1500H(mm)
Weight 368kg

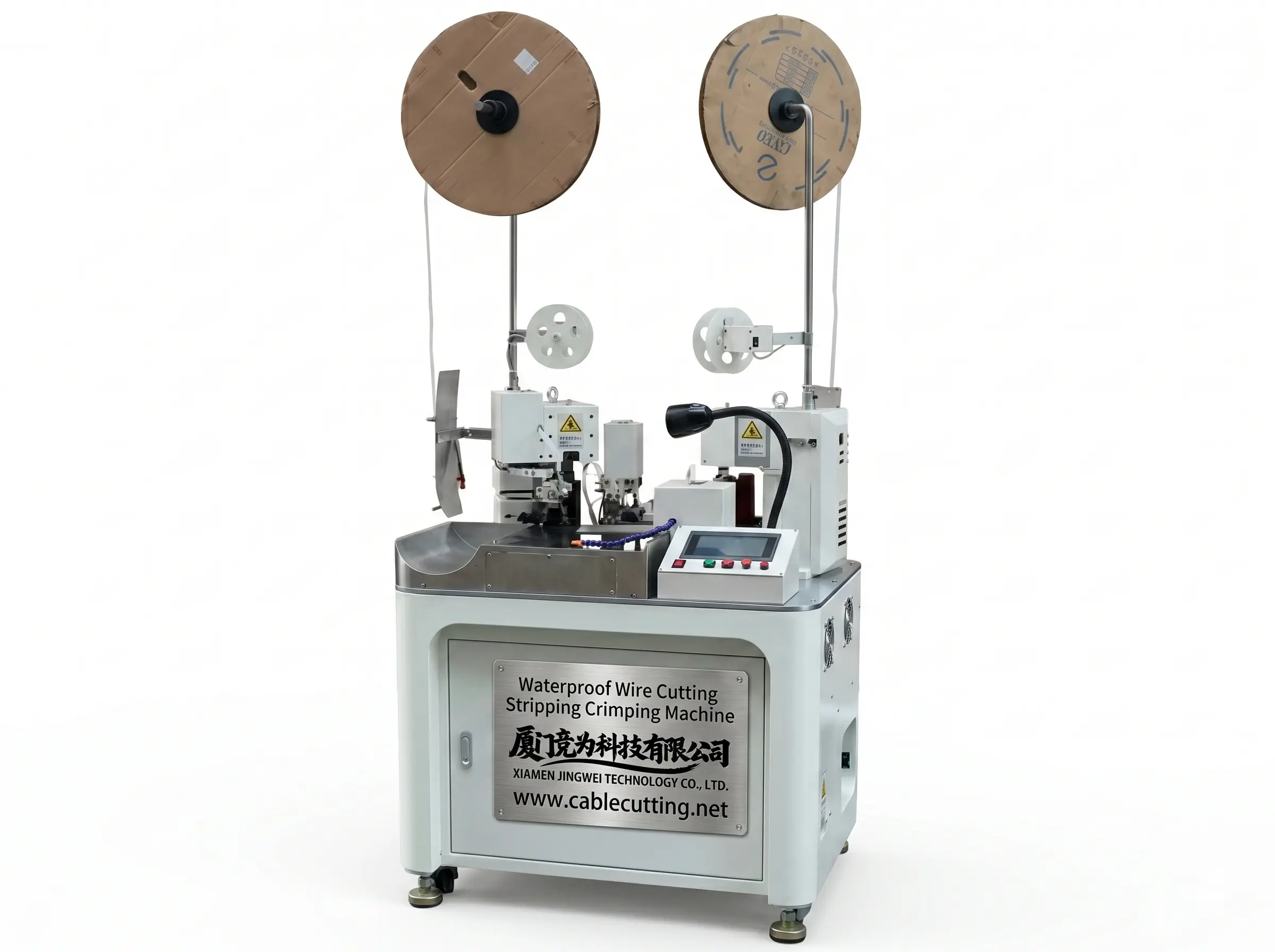

Auto Waterproof Wire Crimp Machine
Auto Waterproof Wire Crimp Machine
Auto Waterproof Wire Crimp Machine
