Automatic Flat Wrap Taping Machine for Cable Harnesses WPM-6-12
Automatic Flat Wrap Taping Machine for Cable Harnesses WPM-6-12 Thumb Automatic Flat Wrap Taping Machine for Cable Harnesses WPM-6-12 Thumb
Video Thumbnail

Automatic Flat Wrap Taping Machine for Cable Harnesses WPM-6-12

📅 2026-05-15 👁️ 1,002
  • Model No: WPM-6-12

  • Specifications

    Automatic Flat Wrap Taping Machine for Cable Harnesses WPM-6-12
    Tape Width Range: 6-12mm
    Tape Thickness: >0.15mm
    Maximum Wrap Points: 5 points
    Overlap: 1/2 overlap per loop
    Winding Modes: Point winding, spiral winding
    Applications: Automotive wiring harnesses, electronic wires, medical wires, cables
    Features: Automatic CNC technology, adjustable laps and speed, output display function
  • Inquiry now

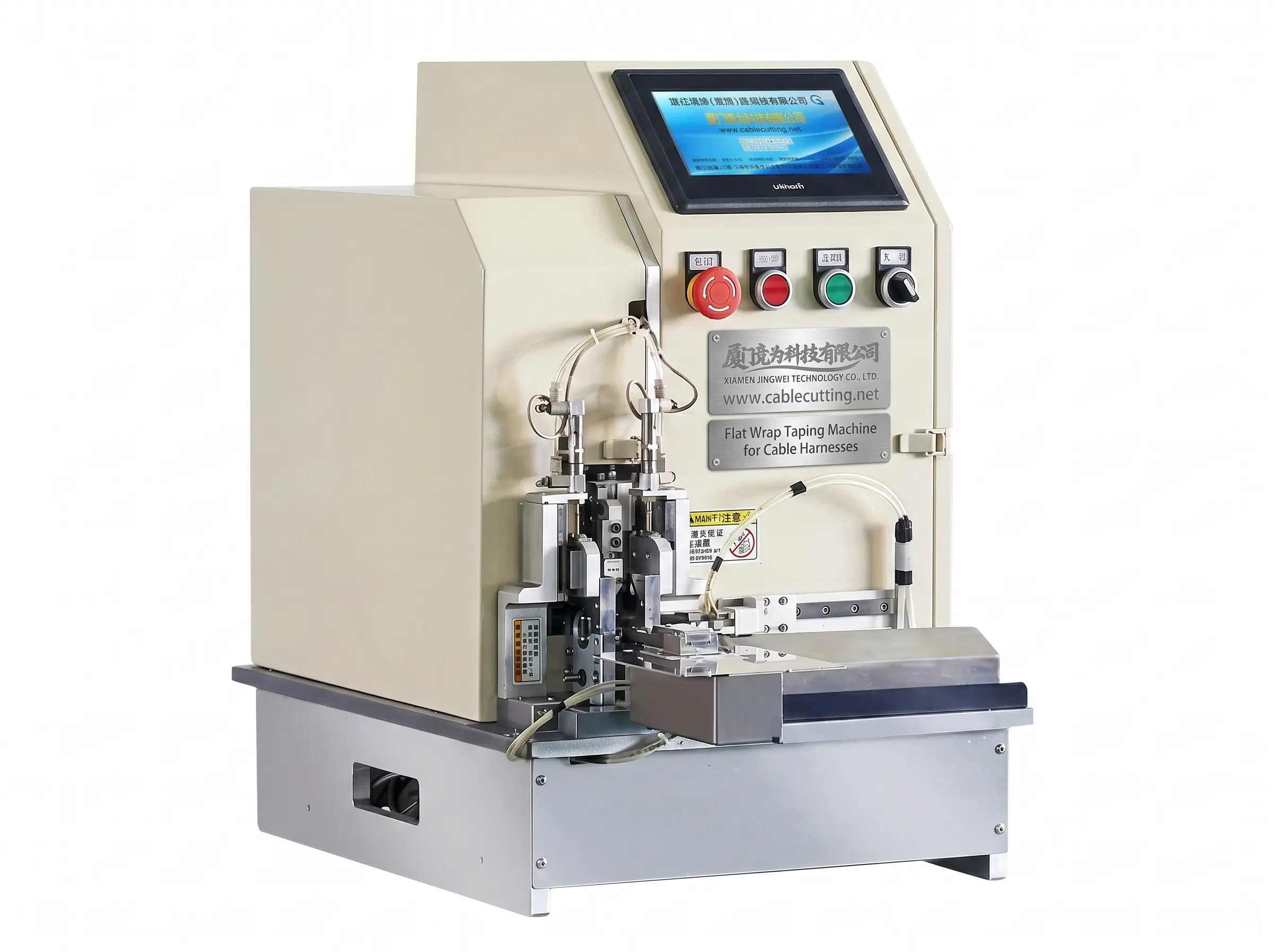

The WPM-6-12 flat-wraps cable harnesses with tape from 6 mm to 12 mm wide and thicker than 0.15 mm. The harness is located in a clamp on the slide table and the head lays tape along the run in point or spiral mode, for up to five wrap points in one program, at 1/2 overlap between loops. Two tape heads are mounted side by side on the bench frame, with the pneumatic lines and clamping fixture on the slide.

A hand-wrapped flat section shows every change of hand position: the overlap drifts, the edges lift, and the build-up over a branch is uneven enough to foul a connector shell or a conduit. The WPM-6-12 is CNC controlled, so lap count and speed are set in the program and the same run is repeated on the next harness, and the output display counts the pieces as they are taped.

This is the flat-wrap model of the range. The WPM-75 (278) tapes coils, the WPM-TP (279) wraps foil for shielding, the WPM-1310 (362) winds PTFE on threaded fittings, and the handheld units (430, 441, 487, 488) are for harness that cannot be brought to a bench. The WPM-6-12 is the one for long straight runs and flat wrapping with a fixed 1/2 overlap over up to five points.

Key Features

1. Flat wrap with tape 6-12 mm wide and thicker than 0.15 mm

2. Up to 5 wrap points per program

3. Fixed 1/2 overlap per loop

4. Point winding and spiral winding modes

5. CNC control with adjustable laps and speed, output display for piece counting

6. Pneumatic clamping fixture on a linear slide table, two heads on one frame

Technical Specifications

ParameterSpecification
ModelWPM-6-12
FunctionFlat wrap taping for cable harnesses
Tape width range6-12 mm
Tape thicknessAbove 0.15 mm
Maximum wrap points5 points
Overlap1/2 overlap per loop
Winding modesPoint winding, spiral winding
ControlAutomatic CNC, adjustable laps and speed, output display

Applications

— Automotive harness - flat wrapping straight runs and branch points to a fixed 1/2 overlap

— Electronics wiring - flat wrap on ribbon and multi-core leads inside enclosures

— Medical cable assemblies - flat wrap where a smooth, low-profile finish is required along the run

— Appliance harness - taping looms that pass through narrow gaps in the chassis

— Harness pre-assembly - five wrap points per program on repeat batch runs
