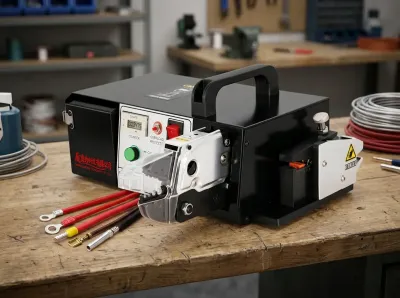

Multi-Function Electric Terminal Crimping Machine 0.25-10mm² EM-6B2BC

Name: Multi-Function Electric Terminal Crimping Machine 0.25-10...
Brand: JINGWEI
SKU: EM-6B2BC
Availability: InStock
Rating: 5 (1 reviews)
Author: Wire Harness Processing Equipment Manufacturer & Supplier | JINGWEI

Electric Terminal Crimping Machine with Wire Stripping & Cutting Function, 8 Die Sets EM-6B2BC

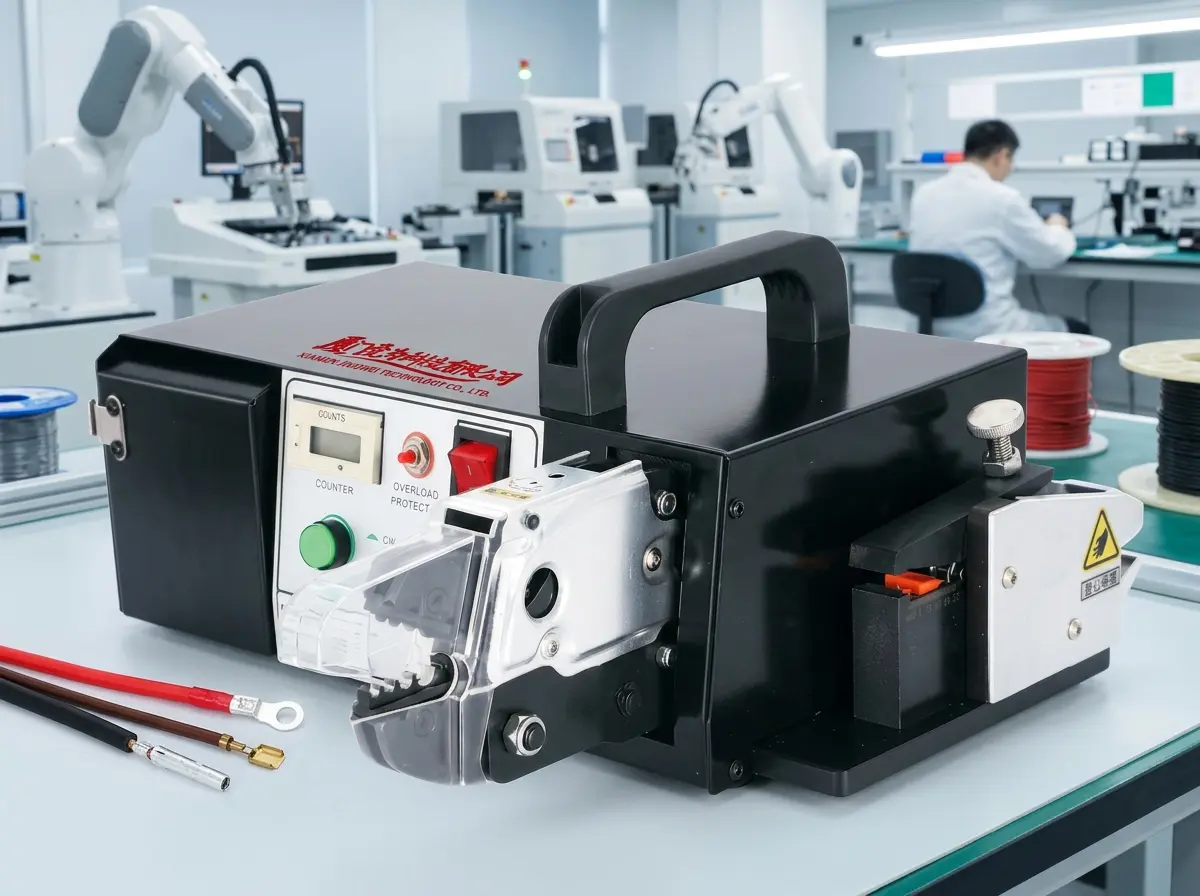

The EM-6B2BC is an all-in-one electric terminal crimping machine designed for solderless electrical connections in cabinet and control panel assembly. It crimps pre-insulated terminals from 0.25mm² to 10mm² and cuts Cu/Al conductors up to 7mm — and goes one step further than standard crimpers by integrating wire stripping and cutting functions into a single compact unit. Labor-saving, fast, and consistent, it is the ideal replacement for manual crimping tools.
Supplied with eight precision, replaceable die sets, the machine adapts in seconds to a wide variety of terminal types. Driven by a fixed-speed motor, the EM-6B2BC delivers high efficiency and high quality in both crimping force and crimping speed, making it the best choice for medium to large production quantities — especially when many different kinds of terminals need to be processed on one machine.
Key Features
3-in-1 Functionality: Combines terminal crimping, wire stripping, and wire cutting in one machine — a dedicated stripping port, cutting port, and stripping adjustment knob eliminate the need for separate hand tools.
Wide Crimping Range: Handles pre-insulated terminals from 0.25mm² to 10mm², plus Cu/Al cutting capability up to 7mm, covering the most common terminal sizes in cabinet wiring.
8 Interchangeable Die Sets: Eight precision die sets are included as standard and can be swapped quickly to crimp ferrules, twin ferrules, insulated/non-insulated O or Y type terminals, male/female receptacles, and rectangular connector pins.
Motor-Driven Consistency: The fixed-speed motor drive ensures stable crimping force and speed on every cycle, removing the inconsistency and fatigue of manual crimping.
Foot Switch Operation: Hands-free foot switch control keeps the operator’s hands free to position terminals and wires accurately, ideal for medium-batch production.
Compact and Portable: A small 325×265×150mm footprint with a built-in carry handle allows the unit to move easily between workstations.
Built-in Protection & Counter: Overload protection safeguards the machine, while the integrated counter tracks production quantities, and a CW/CCW switch adds operating flexibility.
Standard Die Sets Reference
Ferrules: 0.25–35mm²
Twin Ferrules: 2×0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0mm²
Insulated O Type or Y Type Terminals: 0.25, 0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²
Non-Insulated O Type or Y Type Terminals: 0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0, 10.0mm²
Male or Female Receptacles: 0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²
Contact Pins for Rectangular Connectors: 0.5, 1.0, 2.0, 4.0mm²
Typical Applications
Electrical cabinet and control panel wiring — crimping, stripping, and cutting with a single station
Wire harness manufacturing — medium to large batch terminal crimping with frequent die changes
Electrical installation and maintenance workshops — a portable all-in-one crimping, stripping, and cutting station
3. Specifications

Parameter	Specification
Model	EM-6B2BC
Machine Type	Electric Terminal Crimping Machine (with wire stripping & cutting function)
Crimping Range	0.25 – 10 mm²
Cutting Capacity	Cu/Al conductors up to 7 mm
Die Sets Included	8 interchangeable precision die sets
Output Force	12.7 KN
Voltage Range	AC 220 / 110 V
Overall Dimension	325 × 265 × 150 mm
Weight (Net/Gross)	16.8 kg
Operation	Foot switch control
Additional Features	Stripping port, cutting port, stripping adjustment knob, counter, overload protection, CW/CCW switch, carry handle

Multi-Function Electric Terminal Crimping Machine 0.25-10mm² EM-6B2BC

What types of terminals can the EM-6B2BC multi-function electric terminal crimping machine handle?

The EM-6B2BC crimping machine handles a wide range of terminals from 0.25mm² to 10mm², including ferrules, twin ferrules, insulated and non-insulated O-type and Y-type terminals, male/female receptacles, and rectangular connector pins. It comes with 8 interchangeable precision die sets that allow quick switching between terminal types, making it ideal for diverse wiring tasks in cabinet and control panel assembly.

How does the built-in wire stripping and cutting function work on this crimping machine?

The EM-6B2BC integrates stripping and cutting functions into a single unit, eliminating the need for separate hand tools. It features a dedicated stripping port with an adjustment knob for precise insulation removal, and a cutting port that handles Cu/Al conductors up to 7mm. This 3-in-1 design streamlines workflow—operators can strip, cut, and crimp wires at one station, boosting efficiency in medium to large production batches.

What is the crimping force and voltage range of the EM-6B2BC terminal crimping machine?

The EM-6B2BC delivers a consistent output force of 12.7 KN, powered by a fixed-speed motor that ensures stable crimping quality on every cycle. It operates on AC 220V or 110V voltage ranges, making it adaptable to various electrical setups. The machine also includes overload protection for added safety and durability.

Is the EM-6B2BC suitable for high-volume production environments?

Yes, the EM-6B2BC is designed for medium to large production quantities. Its foot switch control enables hands-free operation, allowing operators to precisely position terminals and wires while the machine crimps, strips, or cuts. The integrated counter tracks production output, and the CW/CCW switch offers flexibility. Its compact size and carry handle also make it portable between workstations, ideal for busy workshops or wire harness manufacturing.

What die sets are included with the EM-6B2BC multi-function crimping machine?

The EM-6B2BC includes 8 precision die sets as standard, covering a broad range of terminal types: ferrules (0.25–35mm²), twin ferrules (2×0.5–6.0mm²), insulated O/Y-type terminals (0.25–6.0mm²), non-insulated O/Y-type terminals (0.5–10.0mm²), male/female receptacles (0.5–6.0mm²), and contact pins for rectangular connectors (0.5–4.0mm²). These die sets are interchangeable in seconds, enabling quick adaptation to different terminal sizes without additional tools.
