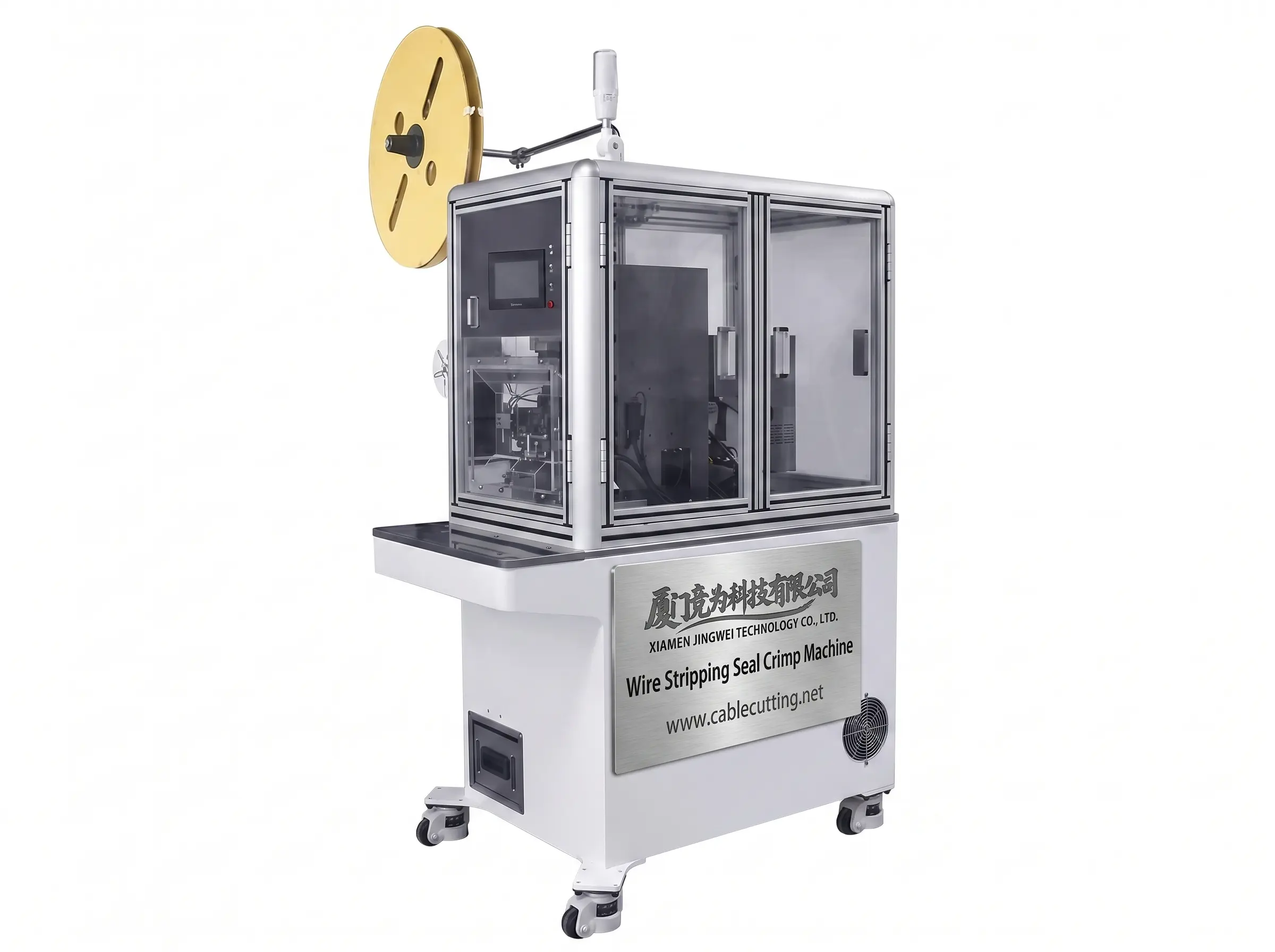

The WPM-5030 is a semi-automatic machine that strips a wire, inserts a seal and crimps a terminal without releasing the wire between steps. It covers 0.2-2.5 mm2 wire, strips 0.1-10 mm, and holds a cut precision of plus or minus 0.02 mm with a 40 mm stroke and 3.0 T crimp capacity. It runs on 220 V or 110 V at 50/60 Hz.
On a sealed harness the seal has to sit behind the crimp barrel at a fixed distance: strip too long and the seal lands on bare conductor, strip too short and the blades nick the strands. Split across three benches, the wire is re-clamped at every step and the reference moves. The WPM-5030 clamps the wire once and completes strip, seal insertion and crimp on the same datum, so the seal position is set by the machine stroke rather than by the operator.
Against a stripping machine feeding a separate crimp press, the WPM-5030 removes two hand-offs per wire, which is where the plus or minus 0.02 mm cut precision is normally lost. Against a fully automatic cut-and-crimp line, it is a stand-alone unit with an enclosed working area for short runs, rework and seal variants that do not justify a new applicator set.
Key Features
1. 0.2-2.5 mm2 wire range with 0.1-10 mm stripping length
2. Cut precision plus or minus 0.02 mm on a 40 mm stroke
3. 3.0 T crimp capacity for sealed and unsealed terminals
4. Strip, seal insertion and crimp on one clamping, without re-referencing the wire
5. Enclosed working area behind clear guards, with the HMI on the front panel
6. Wire spool on a cantilever arm above the machine; 220 V / 110 V, 50/60 Hz
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-5030 |
|---|
| Machine type | Semi-automatic wire stripping, seal insertion and crimp machine |
|---|
| Applicable wire range | 0.2-2.5 mm2 |
|---|
| Stripping length | 0.1-10 mm |
|---|
| Cut precision | Plus or minus 0.02 mm |
|---|
| Stroke | 40 mm |
|---|
| Crimp capacity | 3.0 T |
|---|
| Power | 220V / 110V, 50/60 Hz |
|---|
| Spool mount | Cantilever arm above the machine |
|---|
Applications
— Automotive sealed harness - wire seal plus terminal on 0.2-2.5 mm2 core
— Connector assemblies - single-wire seal inserted behind the crimp barrel
— Home appliance harness - sealed terminals at the control board end
— Motorcycle and powersports harness - sealed splice and terminal joints
— Sensor cable assembly - grommet seal and contact crimp on small-gauge leads
