Portable Ultrasonic Wire Harness Welder for 0.5-20mm² Copper Wires WPM-001N
Portable Ultrasonic Wire Harness Welder for 0.5-20mm² Copper Wires WPM-001N Thumb Portable Ultrasonic Wire Harness Welder for 0.5-20mm² Copper Wires WPM-001N Thumb
Video Thumbnail

Portable Ultrasonic Wire Harness Welder for 0.5-20mm² Copper Wires WPM-001N

📅 2026-05-14 👁️ 1,005
  • Model No: WPM-001N

  • Specifications

    Model Number: WPM-001N
    Operating Frequency: 20KHz
    Input Voltage: AC 220V/50Hz
    Equipment Power: 2000W
    Wire Capacity: 0.5mm² - 20mm² copper wire
    Welding Speed: ~0.6 seconds per weld
    Display: 7" Touchscreen
    Equipment Weight: 20kg (rack) + 13kg (electric box)
    Rack Size: 517*142*181(mm)
    Chassis Dimensions: 453*300*178(mm)
  • Inquiry now

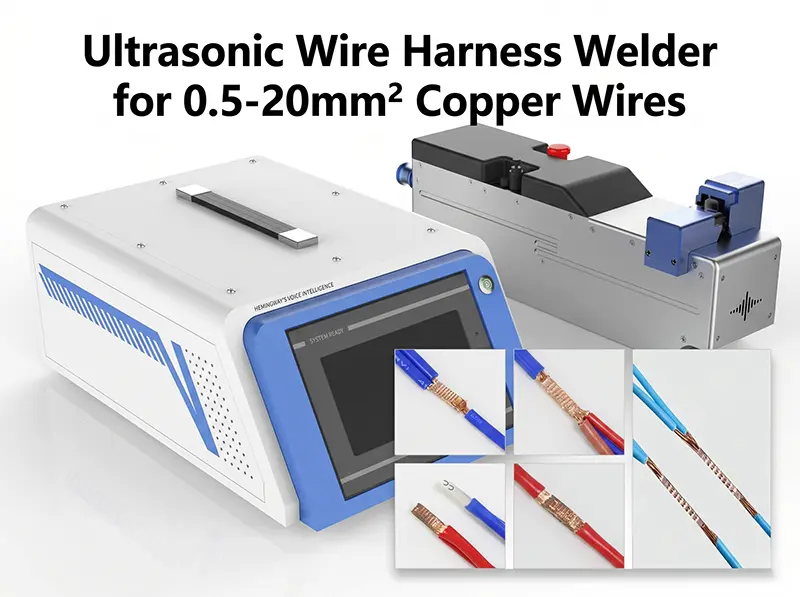

WPM-001N is a portable ultrasonic wire harness welder for copper cable from 0.5 to 20 mm2. It welds at 20 kHz with 2000 W of ultrasonic power, and a splice takes about 0.6 s. The set divides into a 20 kg welding rack carrying the horn and anvil, and a 13 kg control box with a 7 inch touchscreen.

A soldered splice needs flux, filler and a heat source, and the heat travels up the strand bundle into the insulation. Ultrasonic welding joins the strands by friction at the interface instead, so there is no filler metal, no flux residue and no dwell for the joint to cool. The same vibration breaks the oxide film, which keeps joint resistance low without a cleaning step before the weld.

In this pair of portable welders the WPM-001N is the copper-only, larger-section unit: 2000 W, 0.5 to 20 mm2, 7 inch touchscreen. The WPM-X00 runs 3000 W, adds aluminium, covers 0.35 to 12 mm2 and uses a 4.3 inch LCD with a keypad. Where all work is copper and sections run past 12 mm2, the WPM-001N is the wider machine.

Key Features

1. 2000 W at 20 kHz, welding copper cable from 0.5 to 20 mm2 in a single overlap splice

2. Weld time of about 0.6 s per joint, entered on the touchscreen and repeated from the stored setting

3. The joint is made by 20 kHz vibration rather than impact, so there is no hammer noise at the bench

4. Horn and anvil are changed for the cable section, and the head clamps the bundle before the weld starts

5. Split construction: a 20 kg welding rack of 517 x 142 x 181 mm and a 13 kg control box of 453 x 300 x 178 mm, each with its own handle

6. Red stop button on the welding head within reach of the operator, with the horn closing only on the clamped bundle

Technical Specifications

ParameterSpecification
ModelWPM-001N
Machine typePortable ultrasonic wire harness welder
Operating frequency20 kHz
Equipment power2000 W
Wire capacity0.5 - 20 mm2 copper wire
Welding speedAbout 0.6 s per weld
Display7 inch touchscreen
Input voltageAC 220 V / 50 Hz
Rack size / weight517 x 142 x 181 mm / 20 kg
Control box size / weight453 x 300 x 178 mm / 13 kg

Applications

— Automotive harness splices: copper-to-copper joints replacing solder in the tap and joint station

— Home appliance leads: splice points inside cord sets where a soldered joint would scorch the insulation

— Motor and transformer leads: stranded copper taps joined without filler metal

— Electronics and AV cable: small-section joints close to connectors, with heat confined to the weld zone

— Harness cells converting from soldering: same joint position, no flux, no cleaning and no cool-down
