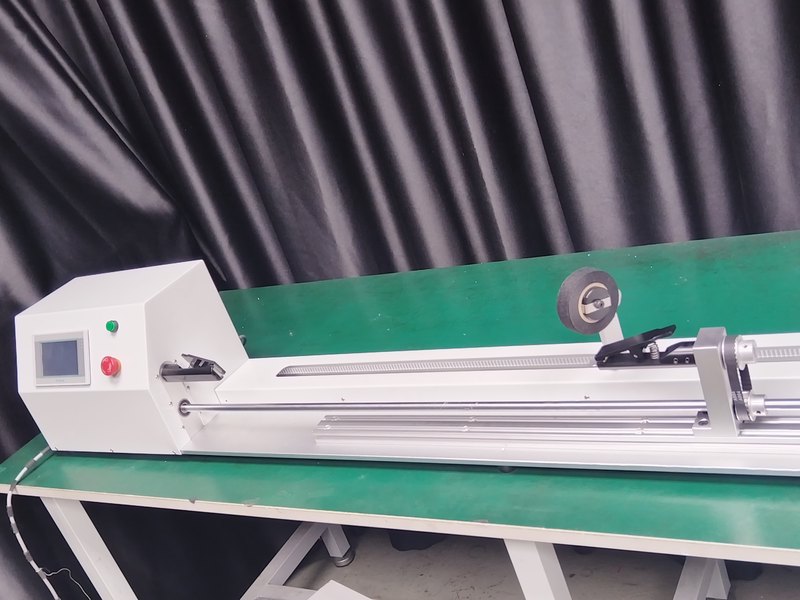

Adhesive Tape Translational Winding Machine JW-303Q

Adhesive Tape Translational Winding Machine JW-303Q

Name: Adhesive Tape Translational Winding Machine JW-303Q
Brand: JINGWEI TECHNOLOGY
SKU: JW-303Q
Availability: InStock
Rating: 5 (1 reviews)

Model No: JW-303Q
Specifications
Operation Method: Touch Screen + Foot Switch
Working Mode: Manual wire clamping, tape translation, product rotation for tape winding
Power Supply: AC210V～AC240V
Winding Length: Fixed length (non-standard lengths subject to separate order); maximum length of standard machine is 1000mm
Winding Combined Wire Diameter: 3mm-10mm
Tape Specifications: Inner diameter 38mm or 32mm, outer diameter ≤100mm, width ≤25mm (custom tape holders available for other tape sizes)
Tape Types: PVC, Flannel, Acetate Cloth Tape, etc.
Operating Temperature: 0-45℃
Operating Humidity: 10-90%RH (no condensation)
Cooling Method: Natural Air Cooling
Inquiry now

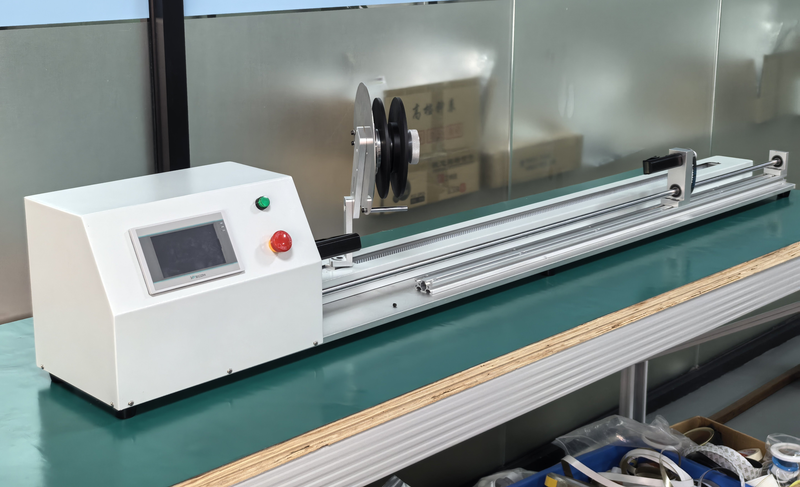

Adhesive Tape Translational Winding Machine Model JW-303Q

Product Overview

The JW-303Q is a high-performance adhesive tape translational winding machine designed for precise and efficient tape winding operations. It integrates user-friendly operation with reliable performance, suitable for various tape types and application scenarios requiring stable winding quality.

Technical Parameters

Operation Method: Touch Screen + Foot Switch
Working Mode: Manual wire clamping, tape translation, product rotation for tape winding
Power Supply: AC210V～AC240V
Winding Length: Fixed length (non-standard lengths subject to separate order); maximum length of standard machine is 1000mm
Winding Combined Wire Diameter: 3mm-10mm
Tape Specifications: Inner diameter 38mm or 32mm, outer diameter ≤100mm, width ≤25mm (custom tape holders available for other tape sizes)
Tape Types: PVC, Flannel, Acetate Cloth Tape, etc.
Operating Temperature: 0-45℃
Operating Humidity: 10-90%RH (no condensation)
Cooling Method: Natural Air Cooling

Configuration List

Serial No.	Category	Name	Quantity	Unit	Equipped	Brand
1	Core Components	Stepper Motor	1	Piece	Yes	Best
2	Core Components	Display Screen	1	Unit	Yes	Weikong
3	Core Components	Controller	1	Set	Yes	Weinview
4	Core Components	Driver	2	Units	Yes	Best
5	Core Components	Power Switch	1	Piece	Yes	Mean Well
6	Core Components	Slide Rail	1	Set	Yes	Domestic Brand
7	Tools & Accessories	Hex Key Wrench	1	Set	Yes	Yuda
8	Tools & Accessories	Power Cord	1	Piece	Yes	Changde
9	Tools & Accessories	Foot Pedal	1	Piece	Yes	Changde
